11 Dining Room Wainscoting Ideas That Balance Vintage and Modern

The list below starts with beadboard and board-and-batten you can handle with a miter saw, moves through flat panel and picture frame molding that paint can change completely, and ends with raised panels and vertical slats that take more time or a different budget.

1. Beadboard Wainscoting

Sage green beadboard reads cottage without trying too hard, and that narrow groove texture catches light softly instead of throwing sharp shadows across your table.

Most runs hit 32 to 36 inches high, which leaves plenty of room for plates or shelves above.

This one suits older homes best, or any space where raised panels would feel stiff. Cleaning takes longer; those grooves collect dust a brush reaches better than a cloth.

2. Wainscoting with Wallpaper

I like this for renters or anyone nervous about committing to floor-to-ceiling print. The wainscoting protects the wall where chairs hit and food splatters; the wallpaper stays safely above the chaos.

Bold choices work here, coastal hues or something with contrast against white trim.

Cost stays lower than full millwork since you’re only papering the upper band. Alignment matters: the pattern needs to meet the rail cleanly, so measure twice and expect to trim the first strip carefully.

3. Board and Batten Wainscoting

Flat vertical strips over a base board give you the rhythm of millwork without the shadow lines or the price of raised panels.

The look runs farmhouse or coastal, which makes sense if you’ve got shiplap ceilings or beadboard in an adjoining kitchen.

Spacing matters more than width. Even battens read calm; uneven ones look like a mistake.

I mark mine out with painter’s tape first and live with it for a day before cutting anything.

Paint in soft white, something with silvery green or warm greige undertones if you want subtle variation against trim. This suits casual dining rooms where a formal wainscot would fight the furniture.

Flat strips don’t catch light the way beveled edges do, so the wall stays quieter. Good if your table setting or chandelier already carries the visual weight.

4. Wainscoting Accent Wall

One wall of picture frame molding with a bold color above turns the dining room into a destination without wrapping the whole space in labor.

The wainscoting becomes a base, almost a pedestal, for whatever you paint or paper above it.

I did this in a long, narrow room where full treatment on every wall would have felt like a box. The accent wall faces the door; the others stay simple.

Deep Royal or a muted violet above white wainscoting gives you contrast without the heaviness of dark trim everywhere.

This works best when the wall you choose already wants attention: the one with the sconces, the window wall, or wherever your eye lands first.

The other three walls need to stay quiet enough to let it read as intentional, not unfinished.

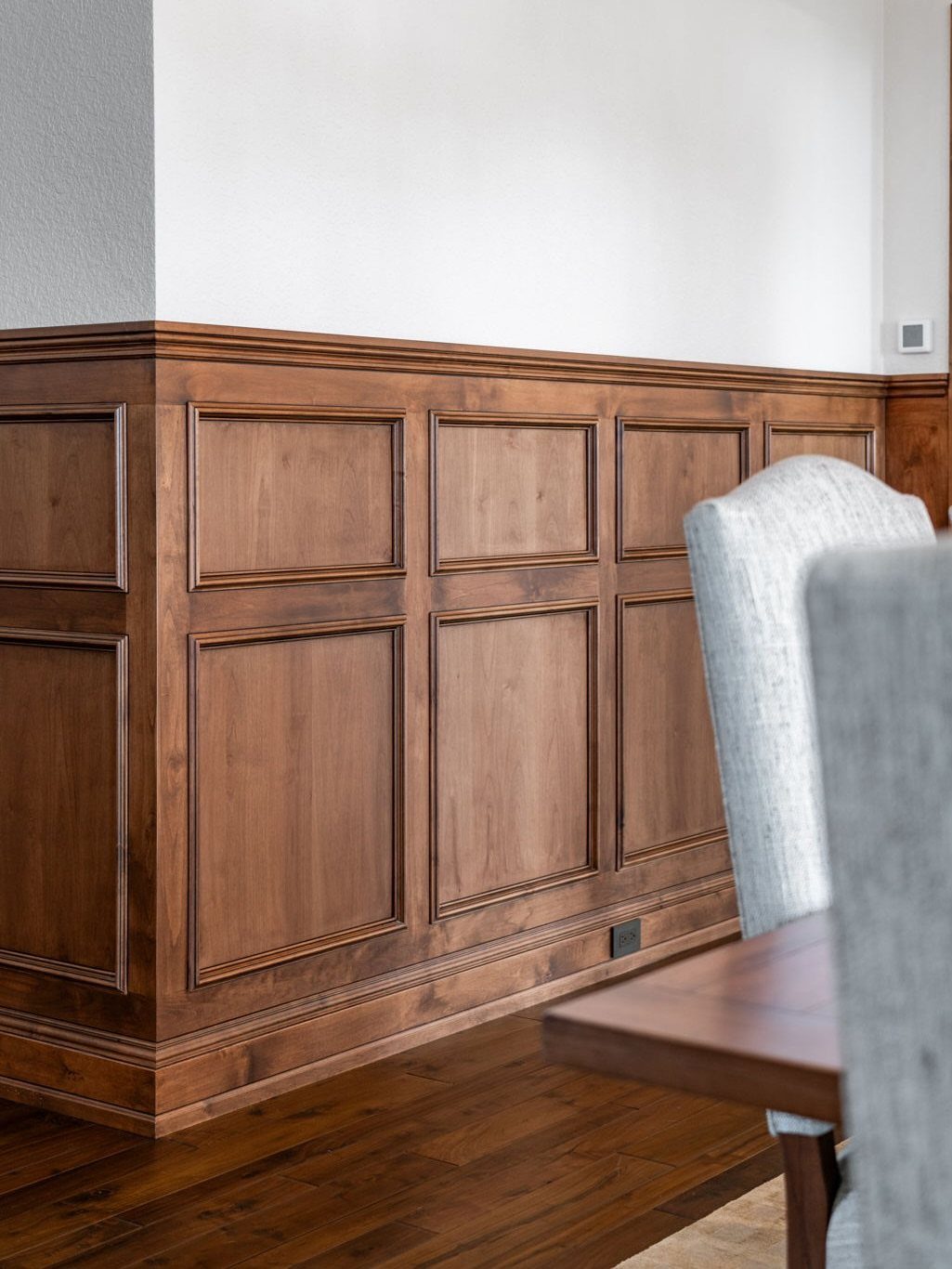

5. Custom Raised Panel Wainscoting

I wouldn’t attempt this in a room with low ceilings; the proportions turn cramped.

Each panel needs to relate to the others in size and spacing, so measure the wall, divide by an odd number, and adjust the end panels rather than the center ones.

Deep forest green below a mural or hand-painted paper gives you traditional bones with something personal above. Labor runs higher: every mitered corner shows, and the cap rail wants a router table or a very patient hand with a chisel.

6. Matte Black Plank Wainscoting

Charcoal planks at chair height ground a dining room that carries too much white or glass, and the grain keeps the black from reading flat under a fixture.

Real pine with a charcoal finish shows variation board to board, which is the point. Peel-and-stick versions with 3M backing install without nails or power tools, rated for normal use over a decade.

I like this for modern spaces where traditional wainscoting would feel inherited. The lower half of your room goes dark, so plan for a fixture that throws downward as well as up.

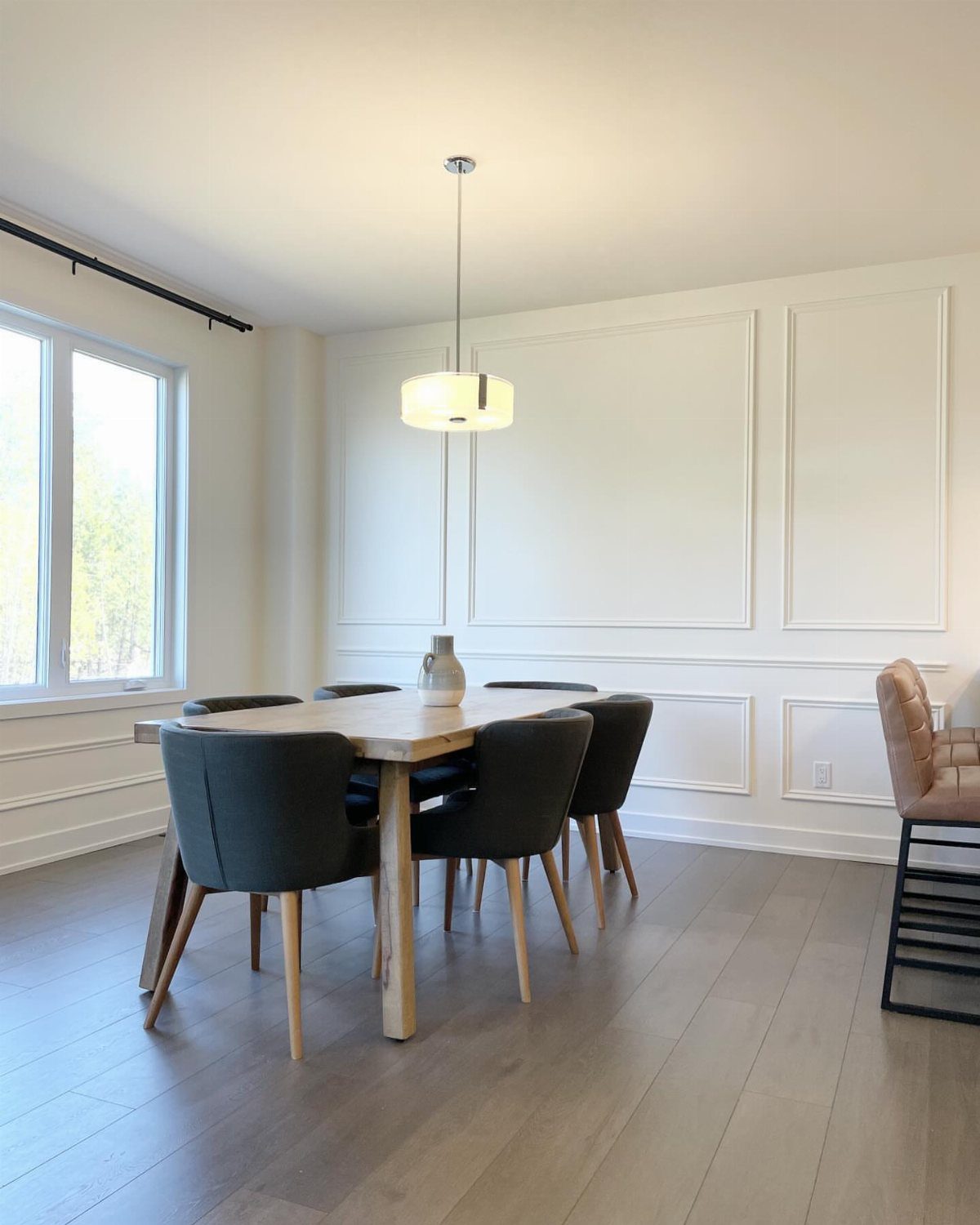

7. Picture Frame Molding Wainscoting

Picture frame molding builds its pattern from thin strips laid flat against the wall in rectangular grids, not from routed panels that sit proud of the surface.

That flatness keeps the cost and the install time low; you are trimming out empty space rather than building up solid forms.

A standard chair-rail cap finishes it low enough to protect the wall from chair backs, though running it taller in rooms with high ceilings stops the upper wall from feeling stranded.

Paint the molding and the field inside each rectangle the same color so the grid reads as texture, not as framed art waiting to happen.

This one suits renters who can persuade a landlord to let them nail up lightweight poplar strips, or homeowners who want traditional formality without the bill raised panels bring.

8. White Flat Panel Wainscoting

White flat panel wainscoting against terracotta reads as fresh rather than farmhouse, which is a trick of the color pairing more than the panel style itself.

The flush, recessed panels sit level with the framing stiles and rails, so the wall stays visually quiet; no shadow lines catch the light and compete with whatever hangs above.

Install it at the usual chair-rail height, or run it taller if your ceiling is high enough and you want the band to hold its own against a woven pendant.

The flat profile takes paint evenly, so matching the baseboard and cap rail to the panel color is simple.

I would put this in a room that already has texture from a light fixture or natural wood table and does not need the walls to add more.

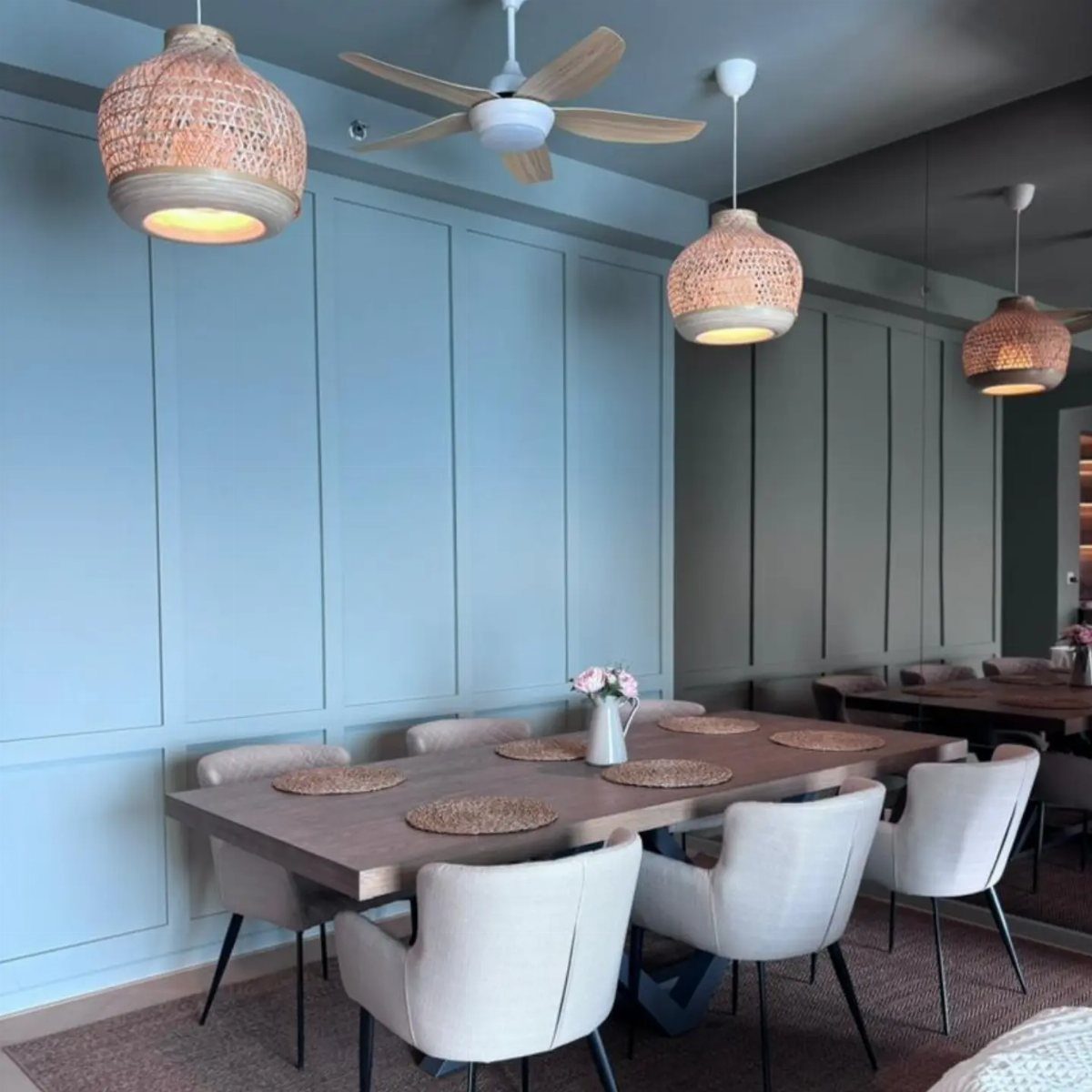

9. Light Blue Flat Panel Wainscoting

Light blue flat panel wainscoting works because the color is doing the work that texture or shadow usually handles.

The panels stay flush and plain; the interest comes from a hue that reads as paint on architecture rather than paint on drywall.

A pale blue at 30 to 32 inches high brightens a small dining nook the way white would, but with more warmth and less glare.

Keep the cap rail and baseboard the same blue for a continuous band, or switch them to white if you want the paneling to read as a distinct piece of furniture against the wall.

This suits rooms with good natural light, where the color shifts through the day and keeps the space from feeling static.

10. Grey Rectangular Panel Wainscoting

Grey rectangular panel wainscoting borrows the flat-panel build but lets the color carry the contemporary weight. A light grey, almost a warm greige, keeps a dining room from feeling like an office even under cool LED bulbs.

Panels this size need walls long enough to fit a couple across without awkward fractions; measure your wall width before you settle on a grid.

The maker behind this example built it as board-and-batten, which is faster than true flat-panel frames because you cover the field with a single sheet and trim over it.

Materials stay reasonable for a single wall if you do the cutting yourself, running far less than custom millwork would.

Wainscot paneling—a paneled lining of an interior wall—was pioneered by British builders in 18th-century England who began adding Danish wainscot oak wood paneling to the bottom half of a room as a way to protect walls and provide additional insulation.

— Elle Decor

11. Vertical Wood Slat Wall Paneling

Vertical wood slat paneling breaks from every wainscoting convention about height and proportion. The slats run floor to ceiling, or close to it, turning the wall into a screen rather than a band.

Space them close together on a backing board; the gaps let the wall color behind show through, so choose that field color as deliberately as the wood tone.

Flanking a central accent wall with slats gives you symmetry without matching wallpaper or paint. This eats more material than short wainscoting, roughly 20% extra for the same wall width, but the install is repetitive cutting rather than precise joinery.

I would use it in a room where the dining table sits centered on the wall and the slats frame the view like curtains made of wood.

Choosing the Right Material

Solid poplar or MDF both work for panels, though solid wood holds paint longer and handles humidity near the coast better than MDF will.

Walnut and white oak hide small scuffs with their tight grain; lighter ash shows marks more easily and wants a protective topcoat if your household is busy.

Reclaimed barnwood looks its age and I like that next to clean-lined modern pieces; the contrast keeps a dining room from feeling like a museum.

Installation Tips

Measure the wall at 3 points before you mark a cap line, since older floors rarely run level.

I measure the cap rail down from the ceiling, not up from the floor, since ceilings are usually straighter than what you’re standing on.

For solid-wood panels with real weight, I find the studs first; adhesive alone makes me nervous when I’m not home to catch it.

Color Combinations

Carolina Gull 2138-40 below Paper White OC-55 gives you a muted green band against clean white. Victorian Garden 1531 above Meadow Mist OC-134 leans botanical; the names sound like a seed catalog but the effect is softer than you’d think.

Budget Considerations

Custom raised panel work costs more because someone has to cut and fit each panel to your actual wall, not a theoretical one.

Beadboard and picture frame molding with thin poplar strips cost less still, and peel-and-stick versions skip the labor entirely.
