10 Unique Wood Floor Patterns for Every Room Style

These 10 patterns run from standard plank you can stagger yourself over a weekend to mansion weave that needs a flat subfloor and a patient installer.

The deciding factor is how much attention you want the floor to draw: some patterns hold still so the furniture speaks, others become the reason you enter the room.

1. Herringbone Pattern

Rectangular planks overlap at 90-degree angles, each end butting square against the next rather than meeting point to point. The width-to-length ratio of the boards controls how tight the zigzag reads; narrower strips look more intricate, wider ones bolder.

This pattern reads traditional without feeling dated, which is why it still shows up in offices and restaurants that need to last.

Installation costs more than straight plank because of the angled cuts and waste, but pre-cut herringbone stock has brought the price down from where it was a decade ago.

Lighter wood keeps a kitchen herringbone floor from feeling busy when cabinets and counters already bring in so much visual weight. Dark herringbone can feel busy in a space that already has cabinetry and island competing for attention.

2. Chevron Pattern

Board ends are mitered at 45 degrees so the points meet flush, forming a continuous V that draws the eye straight through the room.

That uninterrupted line is the whole difference from herringbone; it makes a space feel longer than it is.

The cut means more waste and a higher install cost, though manufacturers now sell planks already shaped for this, which saves on-site cutting time. The pattern dates to 16th-century European floors and still reads modern because of that clean geometry.

I would not put this in a small room with low ceilings; the strong directional pull can feel claustrophobic.

A chevron floor pulls the eye forward best when the sightline has somewhere to land, like a curved sofa waiting at the far end of a living area.

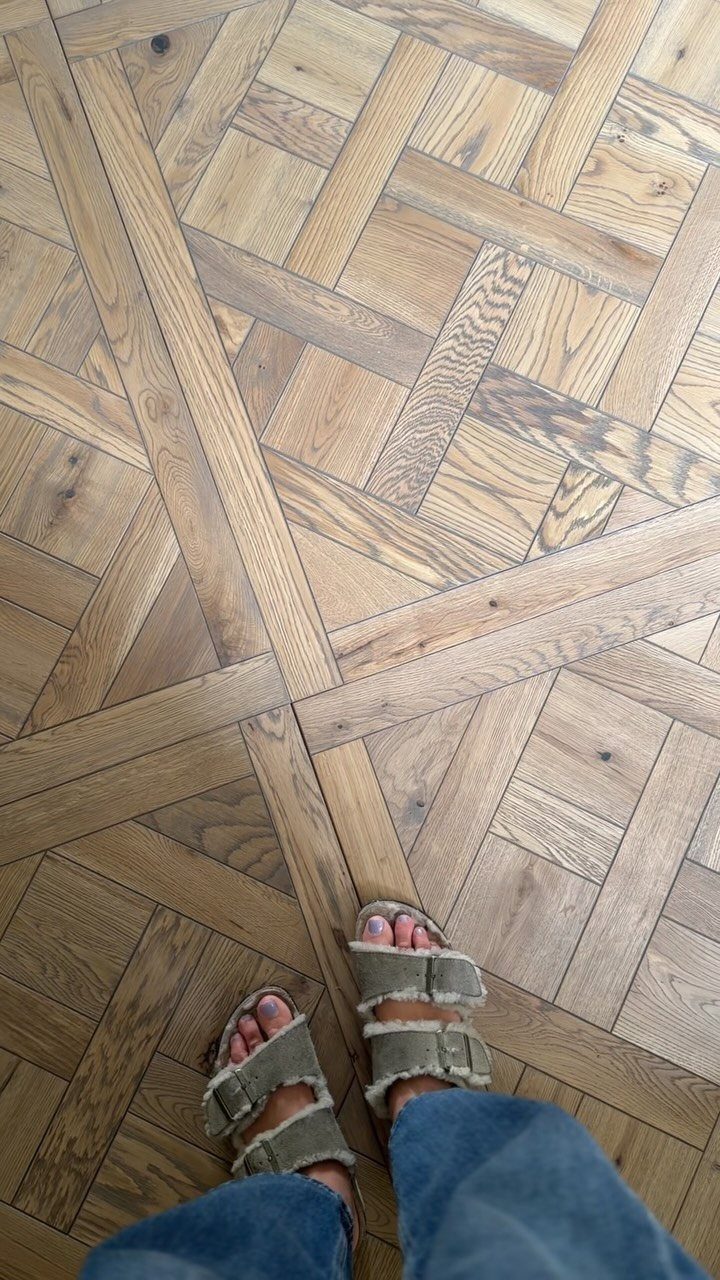

3. Parquet Pattern

Small wood pieces lock together in geometric panels through tongue-and-groove joinery, each panel a miniature composition of its own.

The French developed this in the 1500s, and the Palace of Versailles still runs the most famous early example, its diagonal squares interlocking across whole halls.

Basket weave, hexagon, and the Versailles diagonal itself are the common styles; you pick the panel design rather than laying individual strips. That modularity makes it easier to repair a damaged section later by swapping one panel.

This is not a weekend project. The precision fitting takes a skilled installer, and the cost reflects that.

I’d only go here if the rest of the room is relatively quiet; parquet already carries enough pattern for one space.

4. Basketweave Pattern

Horizontal and vertical strips of equal length cross at right angles, building squares that read like woven wood. Rift-sawn white oak works best for the illusion of continuous strands; flatsawn boards break the effect with their cathedrals of grain.

The pattern stays subtle enough for small rooms, which is unusual among these options. It also reads warmer than herringbone or chevron, less directional, more settled.

I would use this in a traditional house where you want interest without drama, or anywhere the floor needs to play backup to busier elements.

The perpendicular lines do not pull the eye around; they hold still, which is sometimes what a room needs.

5. Random Plank Pattern

Boards of varying lengths go down in staggered rows, each starter piece cut to a different length so no seam lines up with its neighbor.

A good installer keeps joints at least 8 inches apart; closer than that and the stagger starts to look accidental rather than intentional.

This is the cheapest pattern here because it uses standard stock with minimal waste. Early American colonists laid floors this way out of necessity, cutting each plank to what the tree allowed, and the look still reads honest and unfussy.

Mixing widths helps the randomness feel deliberate. I would add that step if the budget allows; same-length boards in varying widths look more considered than one width alone.

6. Painted Geometric Designs Wood Floor

Stain the boards first, then paint your pattern over them in a darker shade; diamonds and checkerboard are the common choices.

The two-layer finish is what separates this from painting raw wood, and it is also where things go wrong if the prep is skipped.

This takes a professional hand. Paint on hardwood peels or cracks without the right adhesion method, and there is no easy fix once the floor sees foot traffic.

The cost runs higher than stain alone because of the labor in masking and the skill in getting clean edges.

Painted geometric floors belong in low-traffic spots like an entryway, not a main living space where the wear shows fast.

The pattern is bold enough that you will want to build the room around it; pick your wall colors after the floor is done, not before.

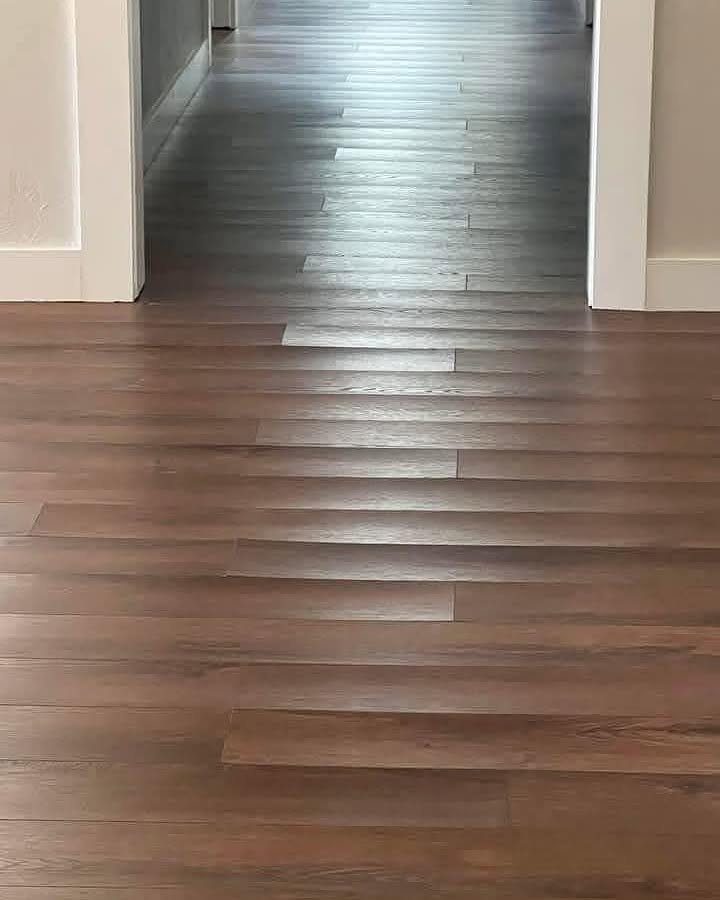

7. Stair Step Pattern

The stair-step pattern, sometimes called lightning bolt, lines up end seams at regular intervals so the boards read like a staircase running across your floor.

Installers like it because you can pre-cut planks to set lengths and rack them fast, rather than staggering seams randomly.

Visible repetition is the downside; from the right angle it looks rhythmic, from the wrong one it looks like a factory floor.

I would not use this in a main living area where I wanted the wood to feel natural.

It suits a hallway or utility space where speed and budget matter more than fussiness, and where the eye passes through rather than settling.

8. Wood Floor Inlay Pattern

Thin strips of contrasting wood form the pattern here, framed by a lighter border that turns the floor into something closer to furniture than substrate.

The technique dates to the 17th century and still reads as the most formal choice on this list.

The detailing is fragile. Direct sunlight fades the inset colors unevenly, and foot traffic scratches the fine lines first.

I would keep this to a dining room or formal sitting area that sees shoes-off use, and I would budget for refinishing sooner than with plain plank.

A simpler parquet without the starburst inlay gives some of the same dressiness with less worry.

If you thought mismatched wooden floors couldn’t look sophisticated, then it’s time to think again. Follow in blogger Pati Robins’ footsteps and use salvaged wood in different shades to score an eye-catching, patchwork-inspired kitchen floor.

— Apartment Therapy

9. Mansion Weave

Mansion weave comes from 17th-century France and works like parquet that forgot to stay rectangular: planks interlock around a central hexagon, with grain running in several directions so the surface catches light unevenly.

That multi-directional grain is what creates the rich, almost textile-like depth.

The pattern needs precise cutting and a subfloor flat enough for the small pieces to seat without rocking. I would hire this out unless I had already laid parquet and had the saw and the patience.

It suits a room you want to feel like a destination, a library or a dressing area, not a thoroughfare. The hexagon reads as old money without the formality of a full inlay.

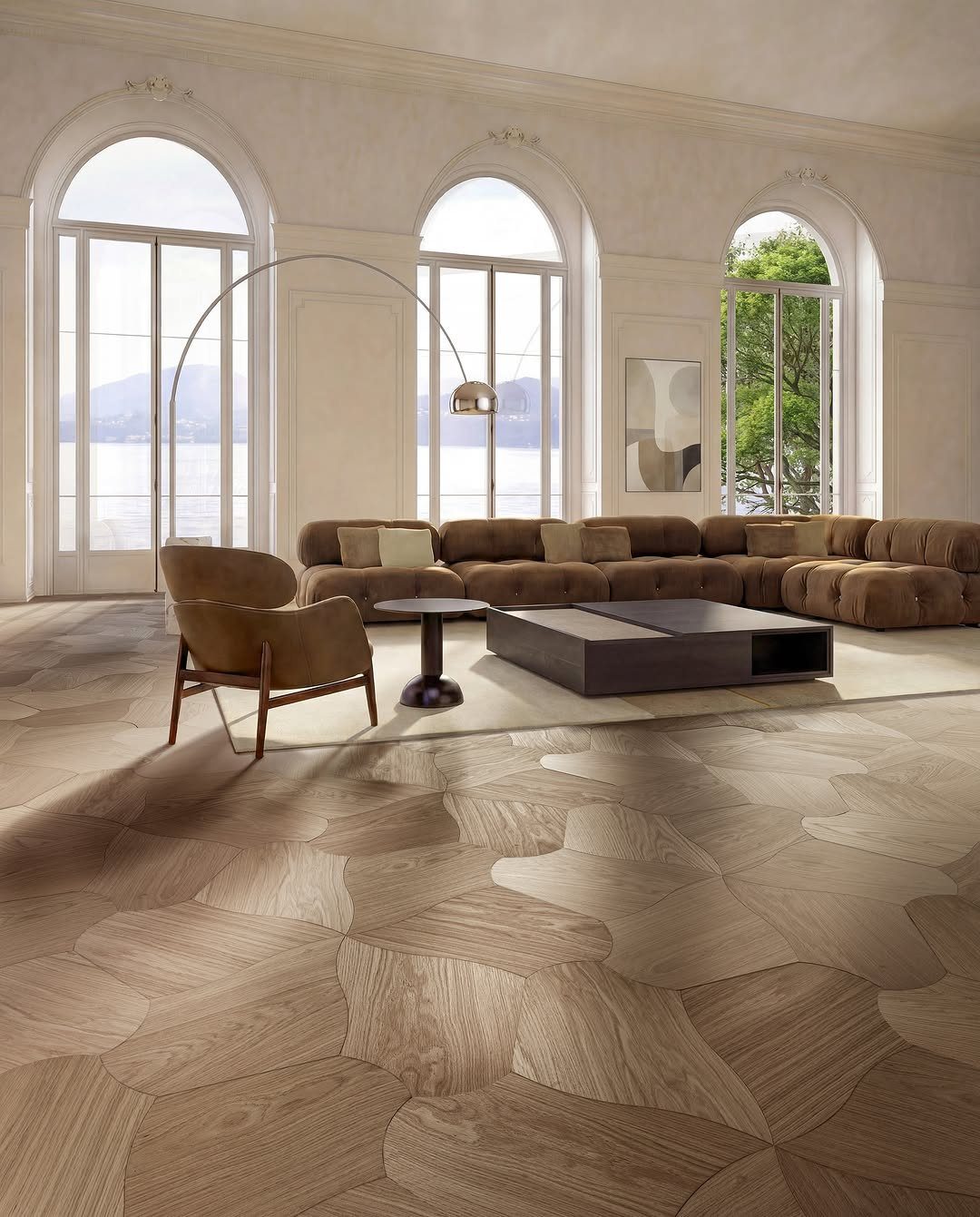

10. Interlocking Geometric Shapes

Interlocking tiles, not site-laid planks, make this pattern possible: the Enigma collection by Jamie Beckwith offers multiple patterns in different woods and stains, and the tiles click together like puzzle pieces.

That means a pro installer is optional and a weekend project is possible, though the subfloor still needs to be flat.

Large-scale irregular shapes suit open plans where the floor has room to breathe and the furniture sits in conversation zones rather than wall-to-wall.

I would not force this into a small galley space; the pattern wants distance to read as intentional rather than busy. One warning: order extra tiles.

A custom shape means no easy replacement from stock if you damage one later.

Installation Complexity

Herringbone and chevron eat up labor hours because every board needs an angled cut, and the fit has to be exact or the line wanders.

Herringbone runs cheaper than chevron since the ends butt square instead of mitering to a point, which means less waste at the saw.

Neither belongs in a small room; the zigzag needs space to resolve or it turns into visual noise.

Small pieces in parquet or mansion weave will rock on any bump, so the subfloor has to be dead flat before you start. The installer is working joinery, not just laying board.

Random plank is the other end. Stair step sits in between; the repetition makes it fast to rack, though the result reads factory-floor from the wrong angle.

Cost Considerations

Intricate patterns cost more at two points: the material that hits the saw floor as waste, and the hours of skilled labor to fit it. Herringbone runs higher than straight plank for both reasons.

Chevron runs higher still because of the 45-degree miter waste.

Herringbone used to cost a lot more than it does now; pre-cut stock changed that.

Random plank stays cheapest by using standard lengths with almost no waste.

I’d put my money into the install before the wood grade. A tight herringbone in mid-grade oak outlasts a sloppy one in walnut.

Visual Impact

A diagonal line pulls the eye longer than the room actually runs. Chevron does this most aggressively; the continuous V draws straight through to whatever sits at the far end.

Herringbone zigzags instead, so the expansion is milder and the feel is more traditional.

Basketweave breaks that rule entirely. The warmth comes from that settled quality.

Large-scale interlocking shapes need distance. In an open plan they read as intentional geometry; forced into a galley kitchen they turn busy.

The furniture arrangement matters too. Conversation zones let the pattern breathe, wall-to-wall seating fights it.

Painted checkerboard or diamonds demand the opposite approach. The floor becomes the dominant element and the room builds around it.

Material Choices

Flatsawn boards break it with their cathedrals.

Intricate cuts wear down softwood fast, so I stick to harder species for busy patterns. The dents and dings show faster where the geometry is precise, and a damaged parquet panel is harder to replace than a straight plank.

Mixed media can work if the secondary material balances the hardwood in hue. Espresso walnut wants a lighter embellishment, not a matching dark.

Tile or stone can be cut to order with a logo or brand mark, though I would reserve that look for a shop or office rather than a home.

Finish matters as much as species. Direct sunlight fades inlay colors unevenly, so I’d budget for earlier refinishing there than with plain plank.
